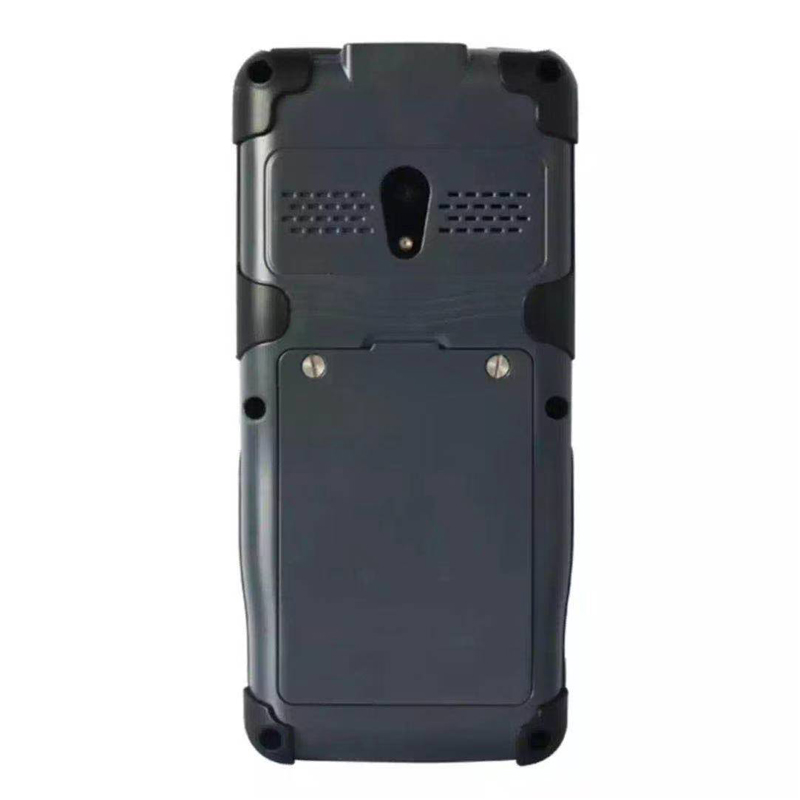

DS-OF500 Smart Home Comprehensive Tester

The DS-OF600 series wireless data terminal is a lightweight, all-in-one communication operation and maintenance terminal based on a smartphone platform.

Contact Us

Product Overview

The DS-OF500 is a handheld smart home comprehensive maintenance terminal based on the Android platform. Designed for network operators, it integrates multiple testing functions into a single device, including:
  • LAN testing
  • Optical power measurement
  • Video troubleshooting
  • ONU testing
  • Red light tracing
  • Network line mapping
  • Barcode scanning and NFC ID card reading
This device supports multiple access methods, including LAN and fiber, allowing operators to verify service activation and assess service quality. DS-OF500 can simulate a user PC for broadband IP line testing or perform PPPoE dialing through a modem to troubleshoot network issues caused by user devices.

Key Features

  • All-in-One Solution: LAN testing, optical power meter, video troubleshooting, HDMI testing, IPTV testing, gigabit speed testing, and wireless speed testing in a single device.
  • Wide Network Compatibility: Supports TDD/FDD/WCDMA/TDS-CDMA/CDMA/GSM networks.
  • Smart Operation: Android 10 system, 8-core CPU, 3GB RAM + 32GB ROM for smooth performance.
  • Efficient Troubleshooting: Network packet capture, line tracing, red light localization, and video fault diagnostics.
  • Portable & Durable: 5.0-inch FHD display, 8200mAh battery, operates in -20℃ to +60℃ environments.
  • Comprehensive Connectivity: RJ45, fiber, RJ11, HDMI, USB Type-C, dual SIM, headset, and micro SD interfaces.
  • Intelligent Scanning: Supports 1D & 2D barcode scanning and NFC ID card reading.

Technical Specifications

Category
Specification
Operating System
Android 10
CPU
8-core, 2.0GHz
Memory
RAM: 3GB / ROM: 32GB
Display
5.0" FHD
Camera
Rear: 16MP, Front: 8MP, Auto-focus
4G Network
TDD/FDD/WCDMA/TDS-CDMA/CDMA/GSM
Bluetooth
V4.1, supports Bluetooth printer
WiFi
802.11 b/g/n/ac (2.4G/5G)
WiFi 6
802.11 ax
Positioning
GPS + Beidou assisted
Interfaces
RJ45 x3, Fiber, RJ11, Red Light, HDMI, USB Type-C, Dual SIM, Headset, Micro SD
Barcode Scanning
1D & 2D
NFC
13.56MHz, supports ID card reading
Main Functions
Network testing, packet capture, video troubleshooting, gigabit speed test, wireless speed test, optical power meter, IPTV test, HDMI test, line tracing
Battery Capacity
8200mAh
Operating Temperature
-20℃ to +60℃
Storage Temperature
-40℃ to +70℃

Configuration List

Standard

  • Main Unit ×1

Optional

  • Carrying Case ×1
  • Adapter ×1
  • Data Cable ×1
  • Cotton Swabs ×1
  • Certificate of Conformity ×1
  • User Manual (QR Code Version) ×1

Application Scenarios

  • Broadband access operations and maintenance
  • Fiber network testing and troubleshooting
  • Customer-side network fault diagnostics
  • Enterprise and home network installation and commissioning
  • IPTV / Video surveillance / HDMI testing

Why Choose DS-OF500

  1. All-in-One Device: Reduces maintenance costs and simplifies workflow.
  1. Fast Diagnostics: Improves service response efficiency.
  1. High Compatibility: Works across various network environments.
  1. User-Friendly Design: Easy to operate and portable for field work.
